Our Range of ESE Lightning Arresters

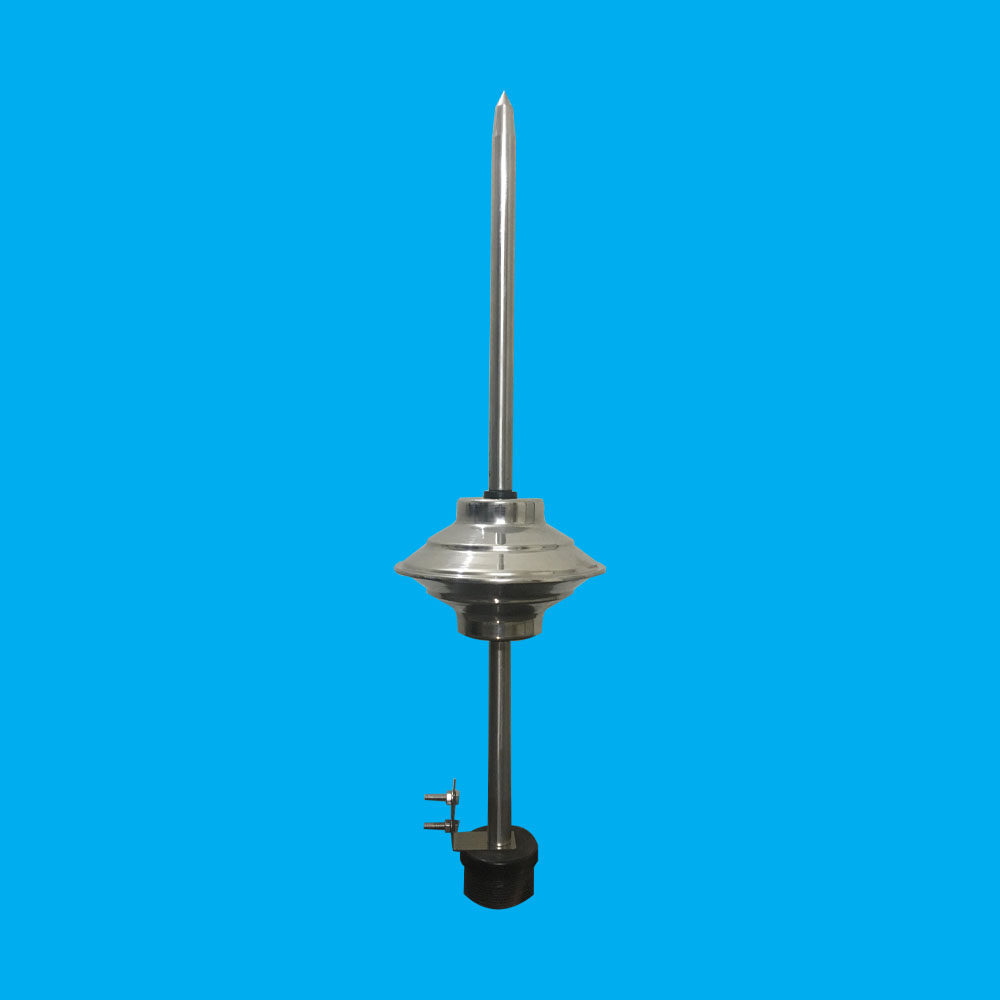

ORKOU Advanced Lightning Arrester
The ORKOU Advanced Lightning Arrester is a non-electronic, maintenance-free ESE (Early Streamer Emission) air terminal designed as per NFC 17-102:2011 standards. Built with high-grade 304L stainless steel and tested up to 200 kA impulse current, it ensures superior lightning protection for industrial, commercial, and residential structures. With a protection radius of up to 113 meters, this system offers 20 years of durability and does not require any external power or battery.
-
Maintenance-free & battery-free design
-
Tested for 200 kA (10/350µs) and 70 kA (8/20µs)
-
CE certified, CPRI tested
-
Body made from 304L stainless steel
-
Advanced high-voltage impulse amplifier
-
Suitable for solar plants, warehouses, buildings, temples
-
Protection radius: Up to 113m (as per mast height)

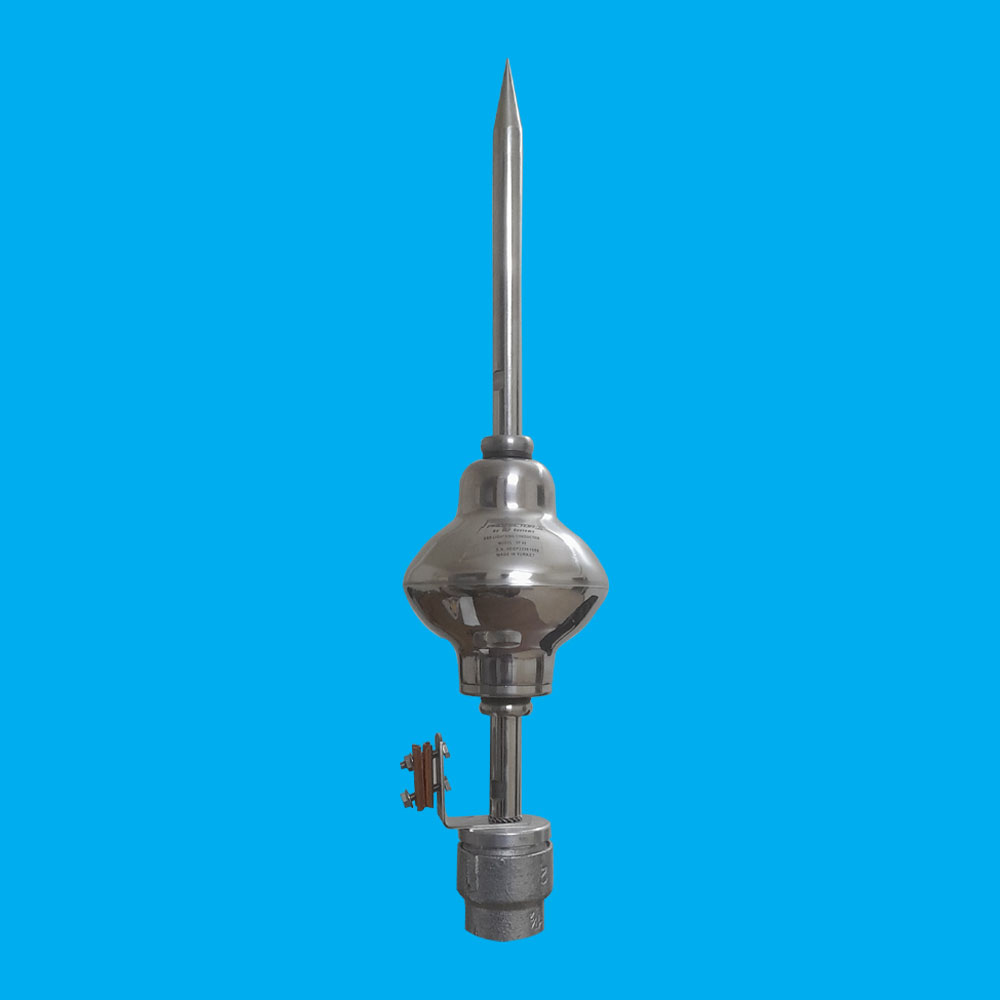

Protector ESE Lightning Arrester
Protector ESE Lightning Arrester is an advanced, maintenance-free air terminal designed to provide early streamer emission (ESE) protection as per NF C 17-102 standards. Its special 4-way Venturi system accelerates ion flow, offering faster lightning capture and wider protection radius — up to 120m depending on model and installation height. Built with corrosion-resistant stainless steel, it ensures long-term durability and safety for industrial, commercial, and residential applications.
-
ESE Technology for faster lightning capture
-
Multiple Models: DP 25, DP 40, DP 60 for different protection ranges
-
CE certified, CPRI tested
-
Corrosion-resistant stainless steel construction
-
No external power or battery required
-
Compact, lightweight & easy to install
-
Suitable for industries, warehouses, solar plants, temples, and residential buildings

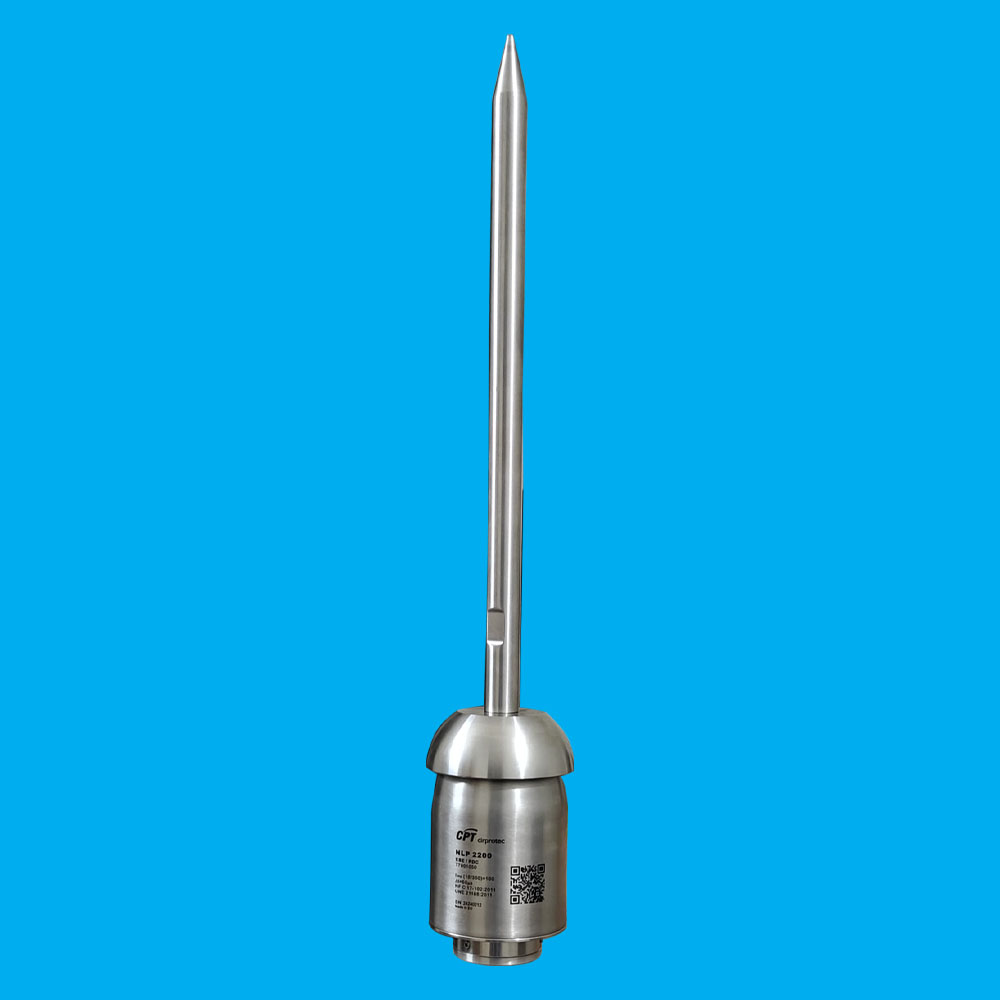

CIRPROTEC NLP-2200 ESE Lightning Arrester
The CPT Cirprotec NLP-2200 is an Early Streamer Emission (ESE) lightning rod made from AISI 316 stainless steel, designed and tested according to NF C 17-102:2011 standards. With an ESE time of 60 μs and a maximum lightning impulse withstand capacity of 100 kA, it offers superior protection for industrial, commercial, and residential structures. Its robust IP67-rated body ensures long-term durability in extreme weather, while the protection radius reaches up to 107 meters depending on installation height and protection level.
-
- Material: AISI 316 Stainless Steel (high corrosion resistance)
-
Standard Compliance: NF C 17-102:2011
-
ESE Time: 60 μs
-
Max Withstood Current: 100 kA (10/350)
-
Protection Radius: Up to 107 m (Level IV, h=5m)
-
Ingress Protection: IP67 (dustproof & waterproof)
-
Operating Temp: -20°C to +80°C
-
Lightweight & Easy to Install

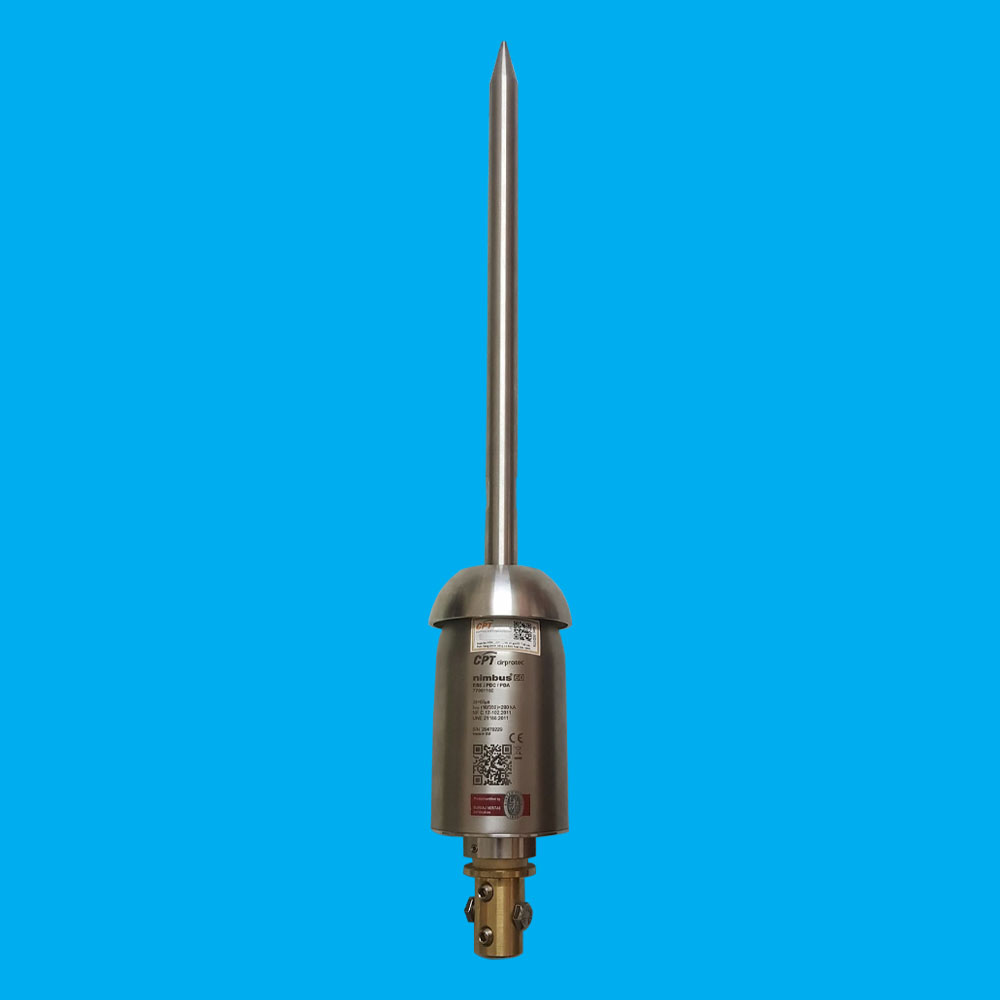

CIRPROTEC NIMBUS 60 ESE Lightning Arrester
The Cirprotec Nimbus 60 is an Early Streamer Emission (ESE) lightning arrester engineered to provide maximum protection against direct lightning strikes. Certified as per UNE 21186:2011 and NF C 17-102:2011 standards, it features an ESE time of 60 μs and withstands currents up to 100 kA. Made from corrosion-resistant stainless steel, it passes rigorous salt mist and sulfur dioxide tests, ensuring long-term durability in harsh environments. Ideal for industrial, commercial, and infrastructure applications requiring wide-area coverage.
-
-
ESE Time: 60 μs (Verified in testing)
- Standard Compliance: UNE 21186:2011, NF C 17-102:2011
-
Max Current Withstood: 100 kA (10/350)
-
Material: High-grade stainless steel
-
Corrosion Resistance: Passed salt mist & sulfur dioxide tests
-
Protection Radius: Large coverage depending on installation height
-
Maintenance-Free and weatherproof design
-
